geom_vline


Reference line defined by X intercept. Useful for annotating plots.

Aesthetics

x intercept parameter that control the position of the line
alpha, colour, line type, size classic aesthetics properties

Other Properties

This geometry does not contain other properties.

Similar Geometries

geom_line, geom_hline, geom_abline, geom_path, geom_smooth

Description and Details

Using the described geometry, you can insert a simple geometric object into your data visualization – a line defined by position on the X axis. You can find this geometry in the ribbon toolbar tab Layers, under the Primitives button.

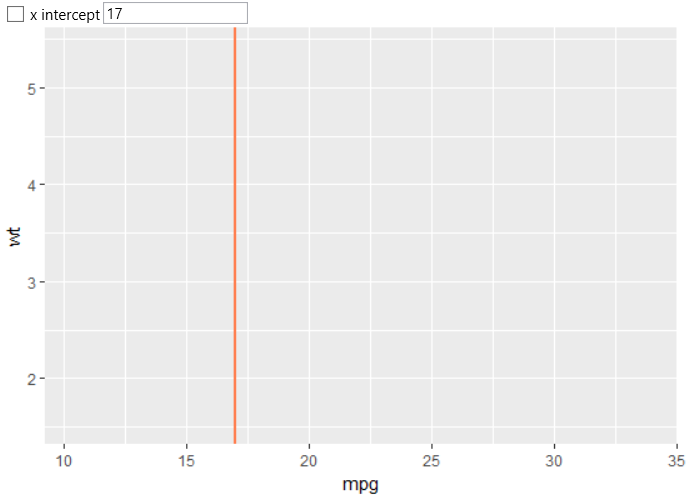

We define the geom_vline geometric object using the position property x intercept, which determines the position of the vertical line in the graph. The example is shown in the following figure. We created one vertical line on the X coordinate 17.

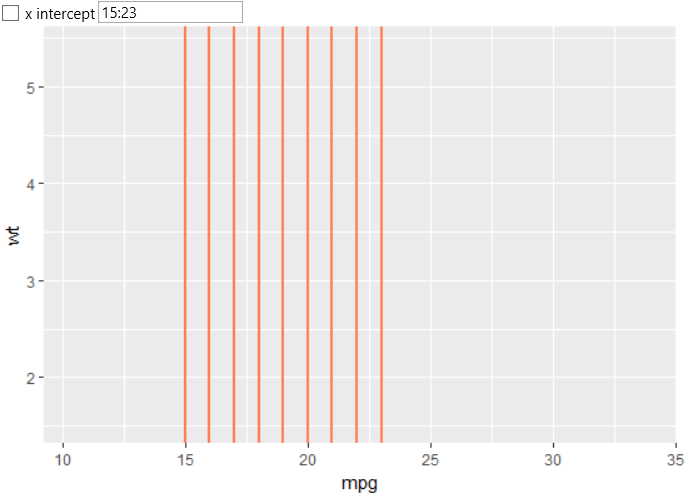

You can define multiple lines with one geom_vline object. If you want to define lines in step of 1 between two values, you can define this in the form 15:23. This entry generates a line between coordinates 15 and 23 in increments of 1. The result is shown in the following figure.

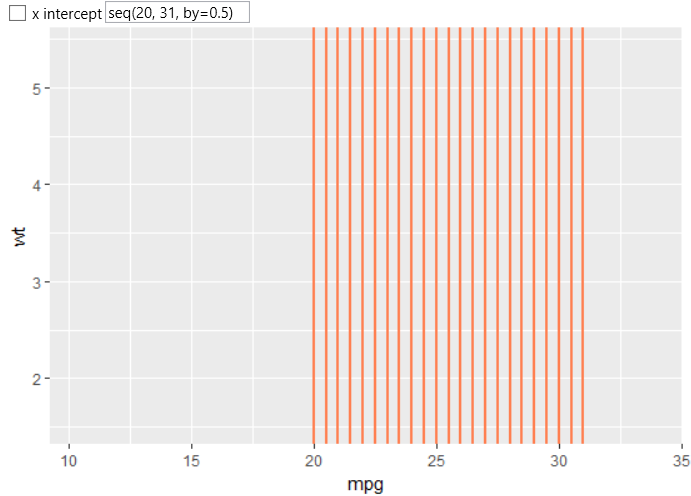

Another way of definition is possible with the selected R function. An example may be the seq function. The following figure shows an example of creating vertical lines at coordinates from 20 to 31 in step 0.5.

In addition to direct definition, you can define vertical lines by mapping them to an imported dataset. For example, we use a dataset whose structure is shown in the following figure.

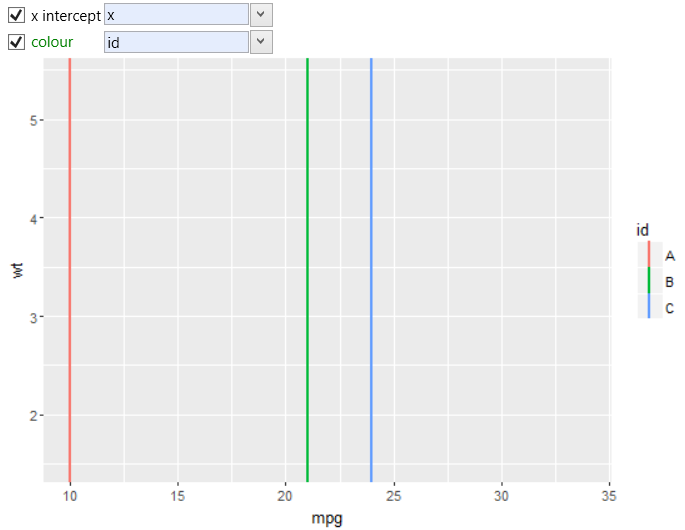

If we associate geometry with this dataset, we can map individual variables to the properties of the geom_vline object. In the following example, we mapped the position property x intercept to the x variable and the line color we mapped to the id variable. The result of such mapping is shown in the following figure.

Similarly, geom_hline geometry layer is defined.
